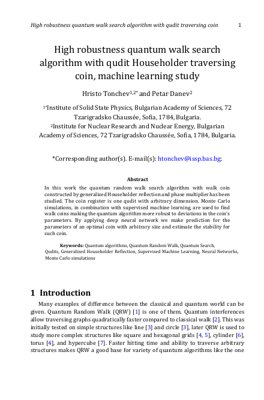

High Robustness Quantum Walk Search with Qudit Householder Coin: A Machine Learning Study

1. Introduction

Quantum Random Walks (QRW) represent a fundamental divergence from classical random walks, leveraging quantum superposition and interference to achieve quadratically faster traversal of graph structures. This capability forms the backbone of several quantum algorithms, including the Quantum Random Walk Search (QRWS). This work investigates a QRWS variant that utilizes a multi-level quantum system (qudit) and a walk coin operator constructed via a generalized Householder reflection, aiming to enhance the algorithm's robustness against parameter inaccuracies—a critical challenge in near-term quantum devices.

2. Theoretical Framework

2.1 Quantum Random Walks & Search

QRWs extend the concept of random walks to quantum systems. The state of a quantum walker evolves in a Hilbert space that is the tensor product of a position space and a coin (internal state) space. The QRWS algorithm uses this dynamics to search for a marked node in a graph, offering potential speedups over classical search.

2.2 Qudits vs. Qubits

While most quantum algorithms use qubits (2-level systems), qudits (d-level systems, d>2) offer significant advantages: exponential increase in information density per carrier, increased noise resilience for certain gates, and potential enhancements to algorithmic performance, as seen in adaptations of Grover's and Shor's algorithms.

2.3 Householder Reflection Coin

The coin operator, which dictates the walker's direction, is constructed using a generalized Householder reflection combined with a phase multiplier. The Householder reflection, defined for a unit vector $|u\rangle$ as $H = I - 2|u\rangle\langle u|$, is generalized for qudits. This method provides an efficient and scalable way to build arbitrary unitary operations for high-dimensional systems compared to sequences of Givens rotations.

3. Methodology & Machine Learning Integration

3.1 Algorithm Construction

The studied QRWS algorithm employs a single qudit as the coin register. The walk step is a combination of the Householder-based coin operator $C(h, \vec{\theta})$—parameterized by a phase $h$ and a vector of angles $\vec{\theta}$—and a shift operator that moves the walker between graph nodes based on the coin state.

3.2 Robustness Optimization via ML

To combat sensitivity to imperfections in the coin parameters (e.g., from imprecise laser control in ion traps), the authors employ a hybrid approach. Monte Carlo simulations generate data on algorithm performance (e.g., success probability) under parameter deviations. This data trains a supervised deep neural network (DNN) to learn the relationship between coin parameters (dimension $d$, $h$, $\vec{\theta}$) and algorithmic robustness. The trained DNN then predicts optimal, robust parameter sets for arbitrary qudit dimensions.

4. Results & Analysis

4.1 Monte Carlo Simulation Findings

Simulations demonstrated that the standard QRWS performance degrades significantly with small deviations in the Householder coin parameters. However, specific regions in the high-dimensional parameter space were identified where the algorithm's success probability remained high even with introduced noise, indicating inherent robustness for certain coin configurations.

4.2 Neural Network Predictions

The trained DNN successfully mapped the complex parameter landscape. It could predict robust coin parameters for qudit dimensions not explicitly seen during training. The predicted "optimal robust coins" showed a flatter, broader peak in success probability around the nominal parameters compared to non-optimized coins, confirming enhanced tolerance to errors.

5. Technical Deep Dive

The core coin operator is defined as: $$C(h, \vec{\theta}) = \Phi(h) \cdot H(\vec{\theta})$$ where $\Phi(h) = \text{diag}(e^{i\phi_0}, e^{i\phi_1}, ..., e^{i\phi_{d-1}})$ is a phase multiplier and $H(\vec{\theta})$ is the generalized Householder reflection. For a unit vector $|u(\vec{\theta})\rangle$ in the qudit space, $H = I - 2|u\rangle\langle u|$. The parameters $\vec{\theta}$ define the components of $|u\rangle$. The search algorithm's performance is measured by the probability of finding the marked node after $T$ steps: $P_{success} = |\langle \text{marked} | \psi(T) \rangle|^2$, where $|\psi(T)\rangle = (S \cdot (I \otimes C))^T |\psi(0)\rangle$.

6. Analytical Framework & Case Study

Framework for Assessing Robustness:

1. Define Noise Model: Specify realistic error sources (e.g., Gaussian noise on $\vec{\theta}$, systematic bias on $h$).
2. Generate Perturbed Ensemble: Create $N$ parameter sets $\{\vec{\theta}_i\}$ by sampling from the noise model.
3. Simulate & Measure: Run the QRWS for each $\vec{\theta}_i$ and record $P_{success}(i)$.
4. Calculate Robustness Metric: Compute the average success probability $\bar{P}$ and its standard deviation $\sigma_P$ over the ensemble. A high $\bar{P}$ and low $\sigma_P$ indicate robustness.
5. Optimize via ML: Use $\bar{P}$ as the target for training a regressor DNN. The DNN learns the function $f: (d, \vec{\theta}_{nominal}) \rightarrow \bar{P}$.
6. Validate: Test the DNN's parameter predictions on a new, held-out set of noise instances and qudit dimensions.

7. Future Applications & Directions

• Near-Term Quantum Devices: Direct application in ion trap or photonic systems using qudits, where control errors are prevalent. This approach could make QRWS algorithms viable on current imperfect hardware.
• Algorithm-Aware Error Mitigation: Moving beyond generic error correction to co-design algorithms with inherent robustness, a philosophy aligned with the US National Quantum Initiative's focus on "Noise-Resilient Algorithms."
• Extension to Other Quantum Walks: Applying the ML-for-robustness paradigm to continuous-time quantum walks or walks on more complex graphs (e.g., hierarchical networks).
• Integration with Other ML Techniques: Using reinforcement learning to dynamically adjust parameters during algorithm execution based on real-time performance feedback.
• Broader Quantum Algorithm Design: The methodology sets a precedent for using classical ML to discover robust parameterizations of other parameterized quantum algorithms (PQAs), such as Variational Quantum Eigensolvers (VQEs) or Quantum Neural Networks.

8. References

1. Ambainis, A. (2003). Quantum walks and their algorithmic applications. International Journal of Quantum Information.
2. Childs, A. M., et al. (2003). Exponential algorithmic speedup by a quantum walk. STOC '03.
3. Kempe, J. (2003). Quantum random walks - an introductory overview. Contemporary Physics.
4. National Institute of Standards and Technology (NIST). (2023). Quantum Algorithm Zoo. [Online]
5. Preskill, J. (2018). Quantum Computing in the NISQ era and beyond. Quantum.
6. Biamonte, J., et al. (2017). Quantum machine learning. Nature.
7. Wang, Y., et al. (2020). Quantum Householder transforms. Physical Review A.
8. Tonchev, H., & Danev, P. (2023). [Previous work referenced in the PDF].

9. Expert Analysis & Critique

Core Insight: This paper isn't just about a better quantum walk coin; it's a strategic pivot in quantum algorithm design for the Noisy Intermediate-Scale Quantum (NISQ) era. The authors correctly identify that brute-force quantum error correction is infeasible for near-term devices and instead propose a co-design strategy: embed robustness directly into the algorithm's parameters using classical Machine Learning as a discovery tool. This mirrors the philosophy behind techniques like CycleGAN's use of cycle-consistency loss for unpaired image translation—instead of forcing a perfect one-step mapping, you structure the learning problem to find inherently stable solutions. The use of Householder reflections for qudit gates is astute, as they are more native and efficient for high-dimensional systems than decomposing into qubit gates, reducing the inherent circuit depth and potential error accumulation.

Logical Flow: The logic is compelling: 1) Qudits offer capacity and noise advantages but require precise control. 2) Householder coins are powerful but parameter-sensitive. 3) Therefore, let's use ML to scour the vast parameter space for regions that are inherently flat (robust) rather than just peaky (optimal in ideal conditions). The link between Monte Carlo simulation (generating the "noise landscape") and supervised learning (learning its topology) is well-justified and practical.

Strengths & Flaws: Strengths: The hybrid quantum-classical approach is its greatest asset, leveraging classical compute to solve a problem intractable for pure quantum analysis. It's highly pragmatic for NISQ applications. Focusing on algorithmic robustness, rather than just peak performance, aligns with real-world constraints highlighted by researchers like John Preskill.
Flaws: The paper likely glosses over the "cost of robustness." A flatter, broader performance peak often means a lower peak success probability. What's the trade-off? Is a 10% drop in ideal performance worth a 300% increase in tolerance? This needs explicit quantification. Furthermore, the ML model's own complexity and training data requirements become a new overhead. Will the DNN need retraining for every new graph topology or noise model? The approach risks being highly problem-specific.

Actionable Insights: For quantum algorithm developers, the takeaway is clear: start building robustness as a first-class citizen in your design criteria, not an afterthought. Use simulation and ML tools early in the design cycle to find inherently stable algorithm variants. For hardware teams, this work underscores the need to provide precise, well-characterized control over qudit parameters—the ML can only optimize what the hardware can reliably tune. The next logical step is to open-source the simulation and training framework, allowing the community to test this methodology on a wider array of algorithms, from VQE to QAOA, creating a library of "robustified" quantum subroutines. This could accelerate the path to practical quantum advantage far more than chasing ever-higher qubit counts alone.
